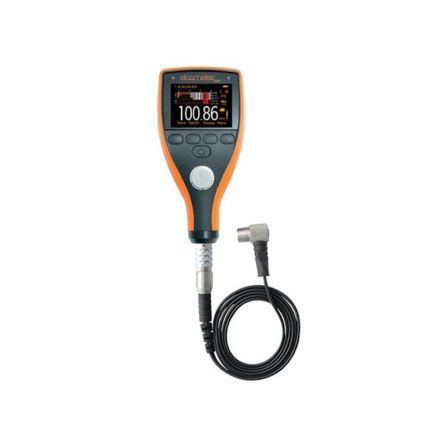

ELCOMETER MTG6 ULTRASONIC MATERIAL THICKNESS GAUGE C/W TXC5M00CP-4 TRANSDUCER & CERTIFICATE
The Elcometer Ultrasonic Material Thickness Gauges have all the features and functionality necessary for measuring material thickness and velocity on virtually any material – for a wide range of applications. The MTG gauges have a range of calibration options including the 1-Point calibration method. Users can also select one of 39 pre-set materials stored within the gauge or store up to three calibrations into the memory. Flexible & easy to use, the Elcometer MTG range doesn’t just measure uncoated surfaces but can also measure coated surfaces. Using Echo Echo ThruPaint™ Mode (EE), coatings up to 2mm (80mils) are ignored.
Features
- Auto recognition, ensures correct probe is identified when transducer is changed
- Scan Mode at 16Hz, ideal for measuring a large surface area
- User selectable reading resolution; 0.1mm (0.01”) or 0.01mm (0.001”)
- Pulse Echo (PE), Echo Echo ThruPaint™ & Velocity (VM) measurement modes
- Hi & Lo limit indicators provides indication of problem areas
- Some MTG gauges are supplied as a gauge only. Transducers must be ordered separately
- Integrated zero disc, ensures maximum accuracy
- Stores up to 100,000 readings in up to 1,000 sequential batches
- Selectable reading rate of 4, 8, 16Hz (4, 8, 16 readings per second)
Sectors / Uses
- Maritime
- General Industry
Certificates
EN 300 328 V2.1.1 / EN 301 489-1 V2.2.3 / EN 301 489-17 V3.2.3 / EN 62479:2010 / EN 60950-1:2006 +A2:2013 / EN 61326-1:2013 / EN 61326-2-1:2013 / EN 55032:2015 / EN 61010-1:2010 / EN63000:2018
